Truck scales

Innovation Series steel deck

Arrow Scale Inc.

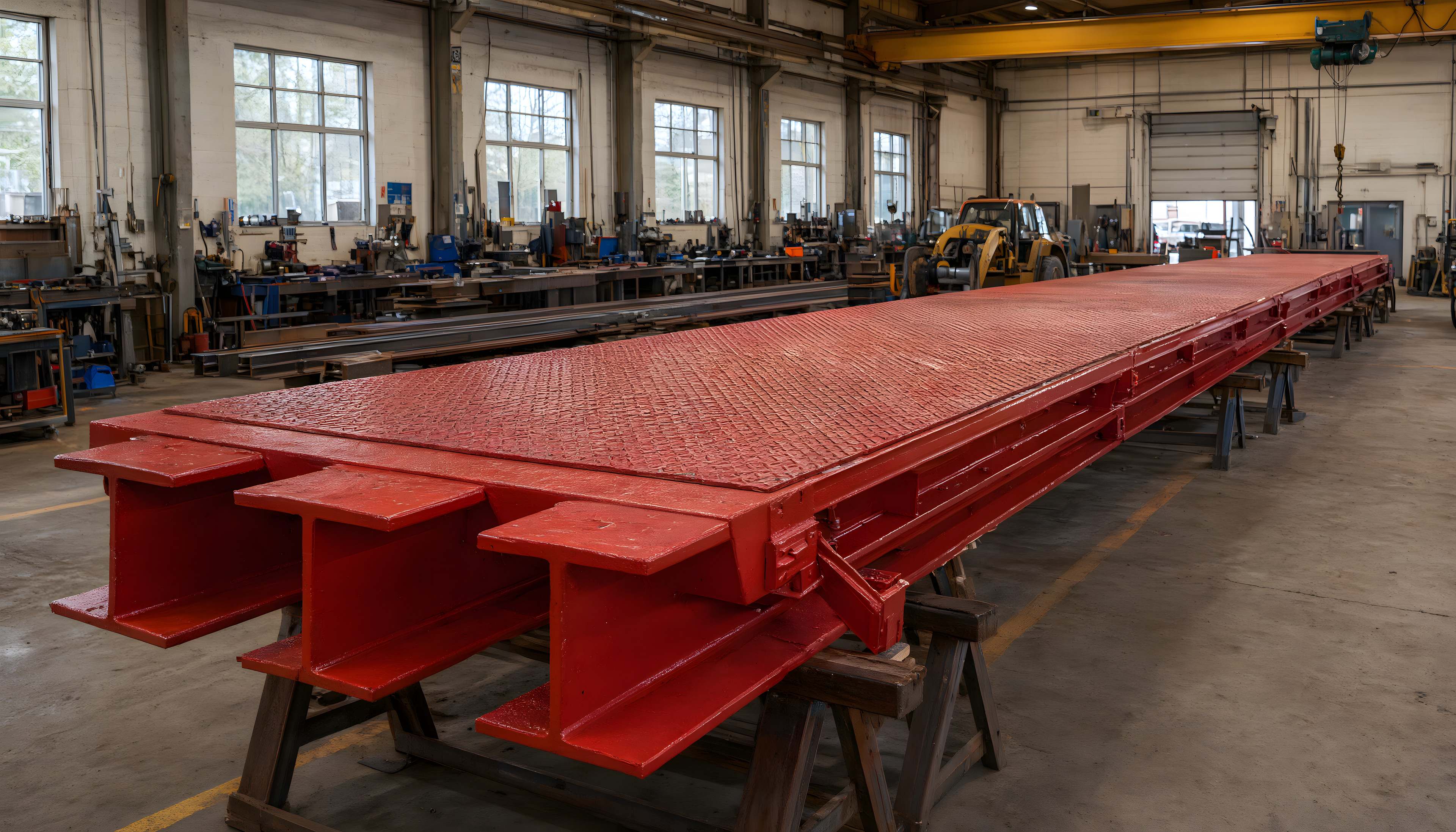

Heavy-duty W14 wide-flange main beams with W8 cross members. Stringers add support under the tire tread path and checker plate is welded to the top edge of the I-beams as the driving surface, for lasting accuracy under extreme traffic and axle loads.

Gross weight capacity

100,000 kg / 200,000 lb

CLC / DTA

90,000 lb

Deck

5/16", 3/8" or 1/2" checker plate

Main beams

W14 wide-flange I-beams

Cross members

W8 wide-flange I-beams

Load cells

80,000 lb NTEP approved

Warranty

5-year weighbridge warranty against manufacturing defects

Sales, installation, service and Measurement Canada certification, 24/7.
