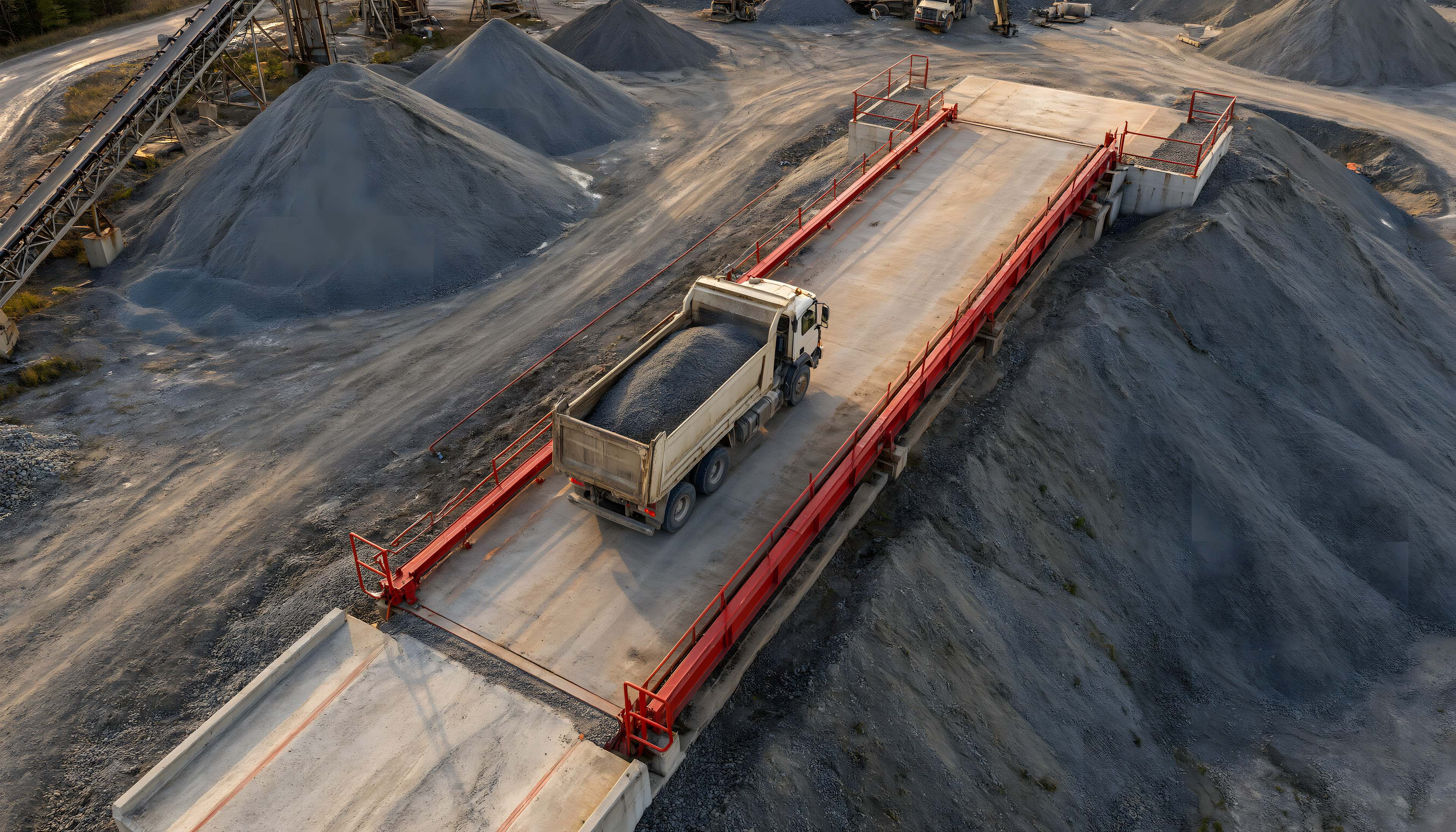

Aerial view of a loaded dump truck on a red steel truck scale at a gravel quarry

Innovation Series

Truck scales engineered to outlast Canadian winters.

Canadian-built with heavy-duty W14 wide-flange main beams for superior strength, in concrete or steel deck, matched with NTEP certified load cells for reliable legal-for-trade accuracy.

Request a quote Brochure (PDF)

We won't sacrifice quality for a sale

Two decks. One standard of strength.

Repeat business is built on reputation, so every Innovation Series scale starts with heavy-duty wide-flange beams and cross members.

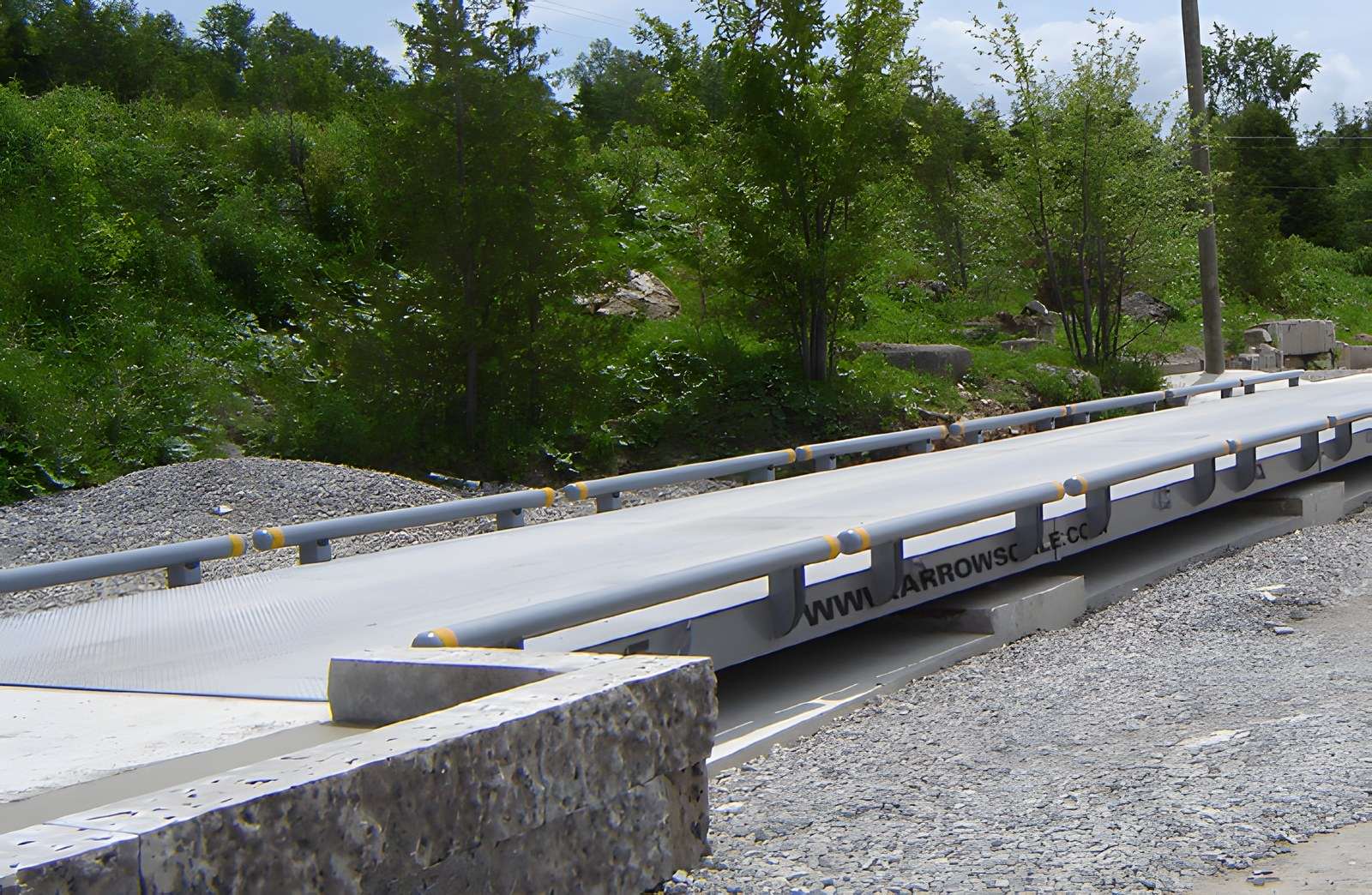

Concrete deck

W14 wide-flange main beams with W6 cross members, more than double the strength most competitors use. A galvanized deck pan and rebar sit on the cross members, keeping 8 inches of concrete above the neutral axis and always in compression. That eliminates the potential for deck cracking and extends the life of the entire weighbridge.

Steel deck

W14 wide-flange main I-beams with W8 cross members. Stringers add support under the tire tread path, and 3/8" checker plate is welded to the top edge of the I-beams as the driving surface. Built for lasting accuracy under extreme traffic and axle loads.

Performance

Specification at a glance.

Stainless steel compression load cell on a stand beneath a weighbridge beam

Gross weight capacity: 100,000 kg / 200,000 lb
Concentrated load capacity (CLC): 110,000 lb concrete deck · 90,000 lb steel deck
Dual tandem axle (DTA): 110,000 lb concrete deck · 90,000 lb steel deck
Load cells: 80,000 lb NTEP approved
Concrete deck: 8", 10" or 12" ready-for-field-pour
Steel deck: 5/16", 3/8" or 1/2" checker plate
Guide rails: 4" OD tubing, 1/2" mounting plates at 3' intervals
Warranty: 5-year weighbridge warranty against manufacturing defects

Features

Designed for the technician, not just the spec sheet.

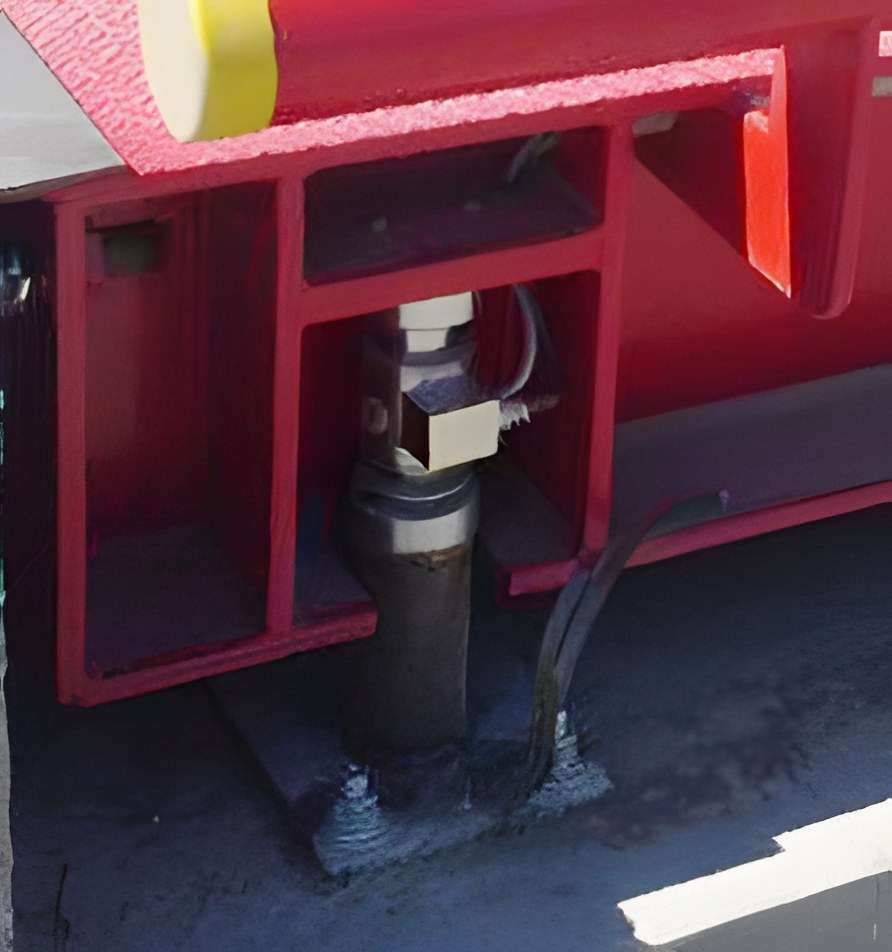

Load cell mount

Located above the bottom of the weighbridge, self-checking, with stainless upper and lower receivers. Stands can raise clearance, and no wires, conduit or cells sit in harm's way below.

Single stainless steel NEMA 4 summation box eliminates secondary boxes, splices and water contamination.
Side access to load cells and junction box for faster troubleshooting and repair.
All components sit high above the bottom of the weighbridge, out of reach of debris.
All cabling runs in conduit under the top flange of the I-beam.
Easy adjustment and maintenance, even in winter.
Modules customized to fit existing foundations or custom sizes.

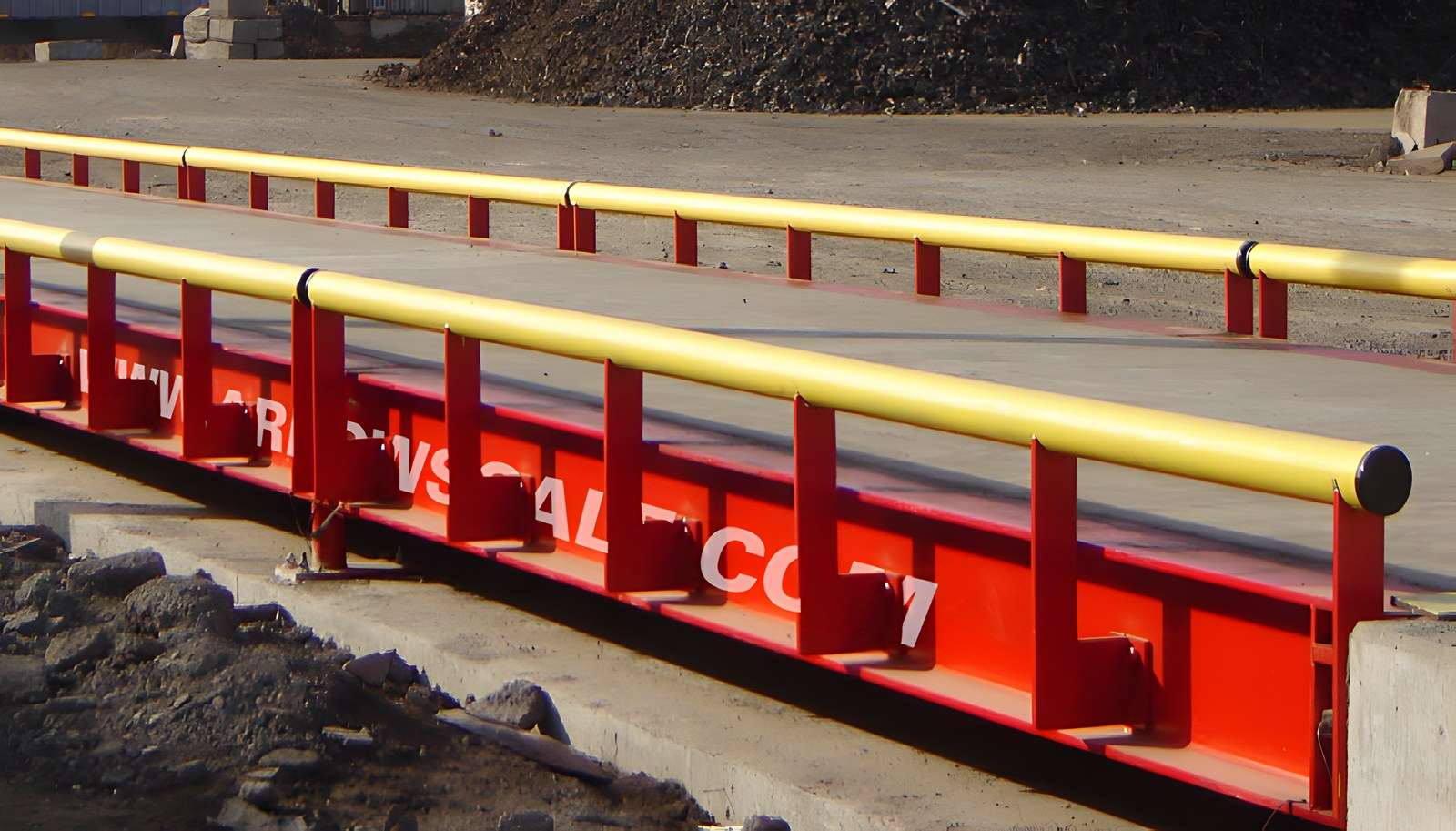

High-strength steel guide rails for added safety.
Custom undersize clearance available on request.
5-year lightning protection guarantee.
