Truck scales

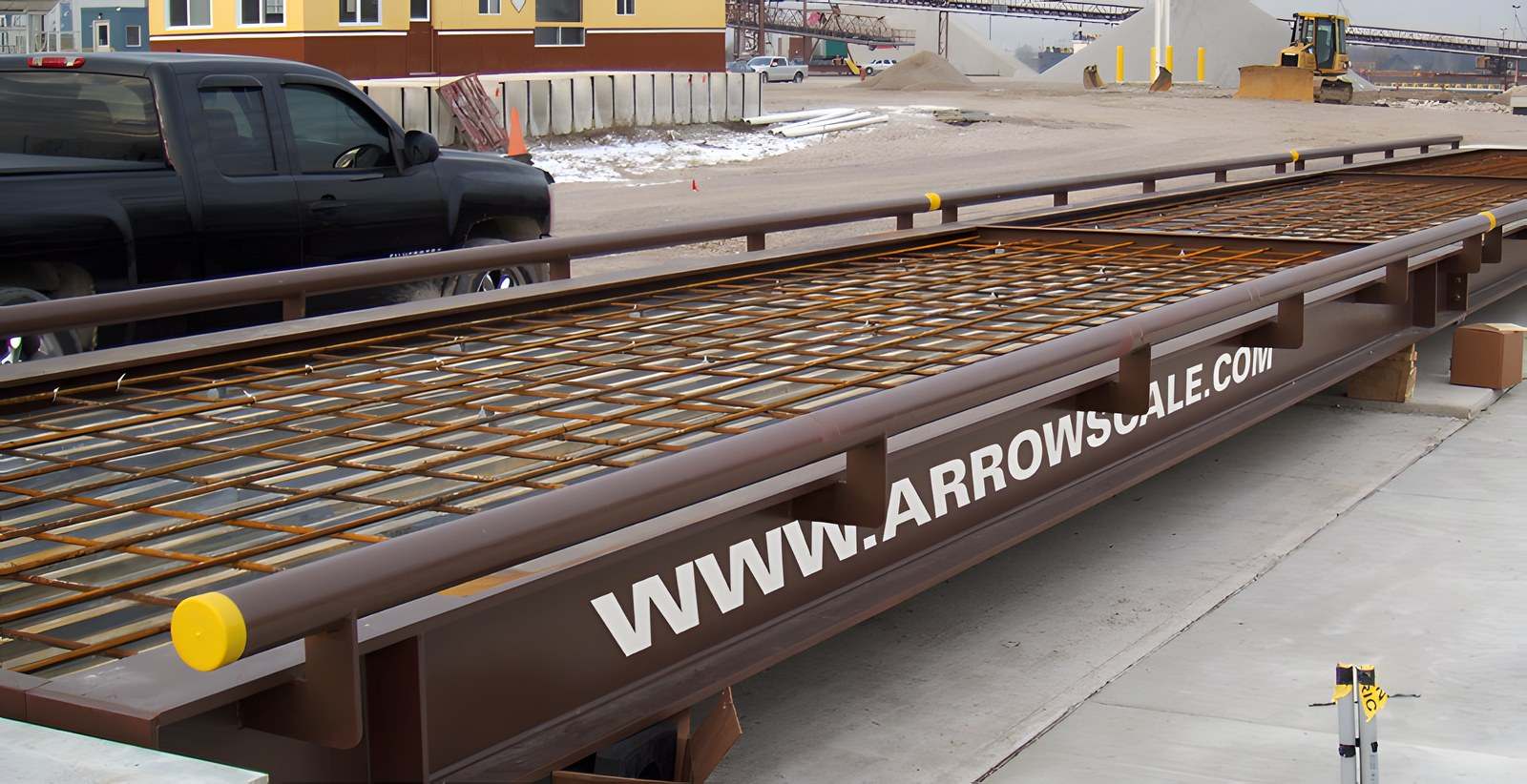

Innovation Series concrete deck
Arrow Scale Inc.
Heavy-duty W14 wide-flange main beams with W6 cross members, more than double the strength most competitors use. Eight inches of concrete sit above the neutral axis, keeping the deck in constant compression to prevent cracking and extend the life of the weighbridge.
- Gross weight capacity
- 100,000 kg / 200,000 lb
- CLC / DTA
- 110,000 lb
- Deck
- 8", 10" or 12" ready-for-field-pour concrete
- Main beams
- W14 wide-flange I-beams
- Cross members
- W6 wide-flange I-beams
- Load cells
- 80,000 lb NTEP approved
- Guide rails
- 4" OD tubing, 1/2" mounting plates at 3' intervals (optional)
- Warranty
- 5-year weighbridge warranty against manufacturing defects
Sales, installation, service and Measurement Canada certification, 24/7.
