Indicators

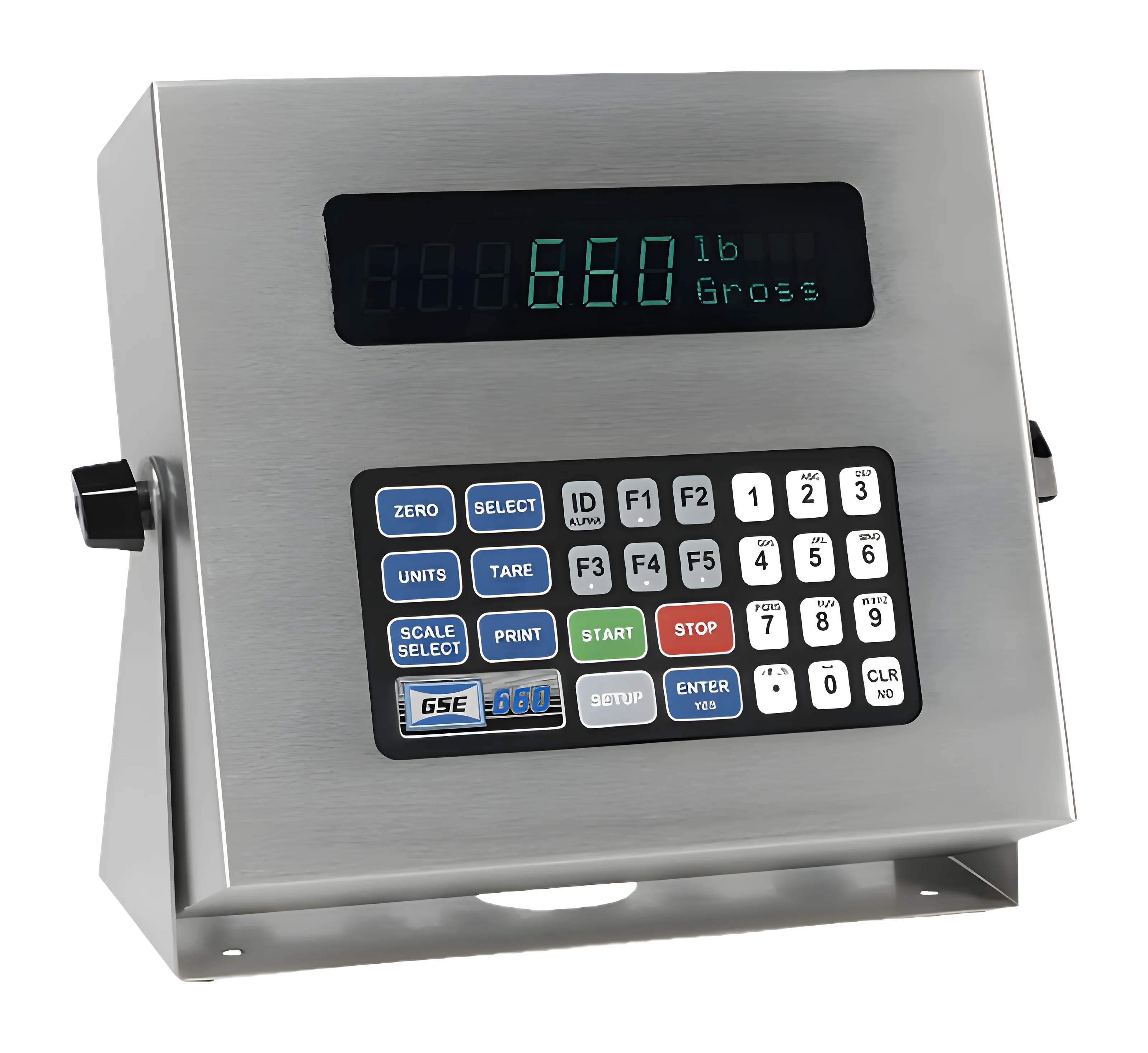

660 Series

GSE Scale Systems

660 Series by GSE Scale Systems, supplied, installed and serviced by Arrow Scale Inc. Contact our team for specifications, availability and pricing for your application.

Full scale selectable 0 to 999,999; 100,000d displayed (+/-500,000 internal)

Non-linearity 0.005% F.S.; 5-point linearization

Excitation 10 VDC, 400 mA, up to 14 x 350-ohm bridges

Up to 128 I/O, 16 ms scan rate

4 serial ports (RS232; RS485 optional); Modbus, DeviceNet

Power 90-250 VAC, 50/60 Hz; 2-year warranty

Specifications from dataweigh.com. Confirm with Arrow Scale for your application.

Sales, installation, service and Measurement Canada certification, 24/7.
